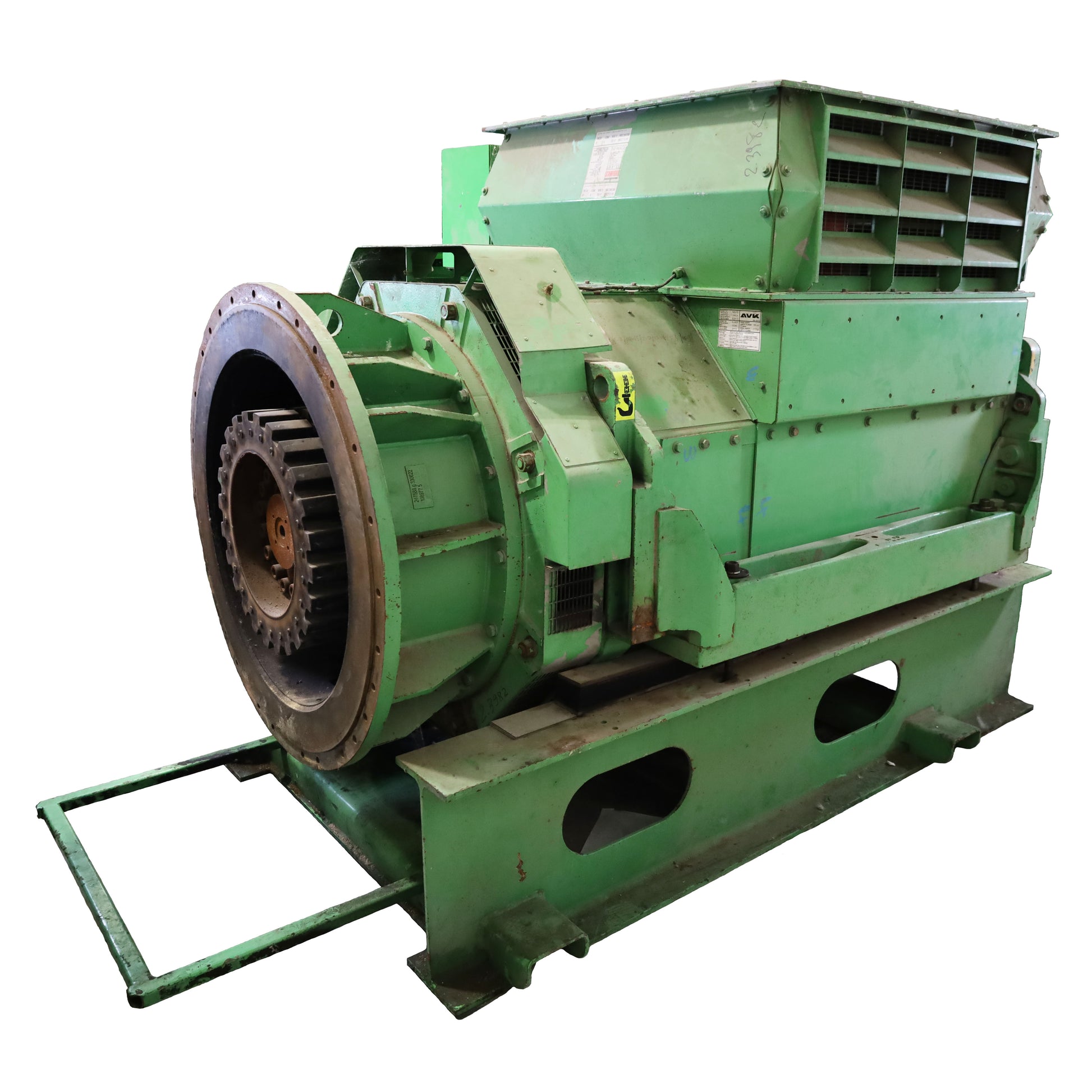

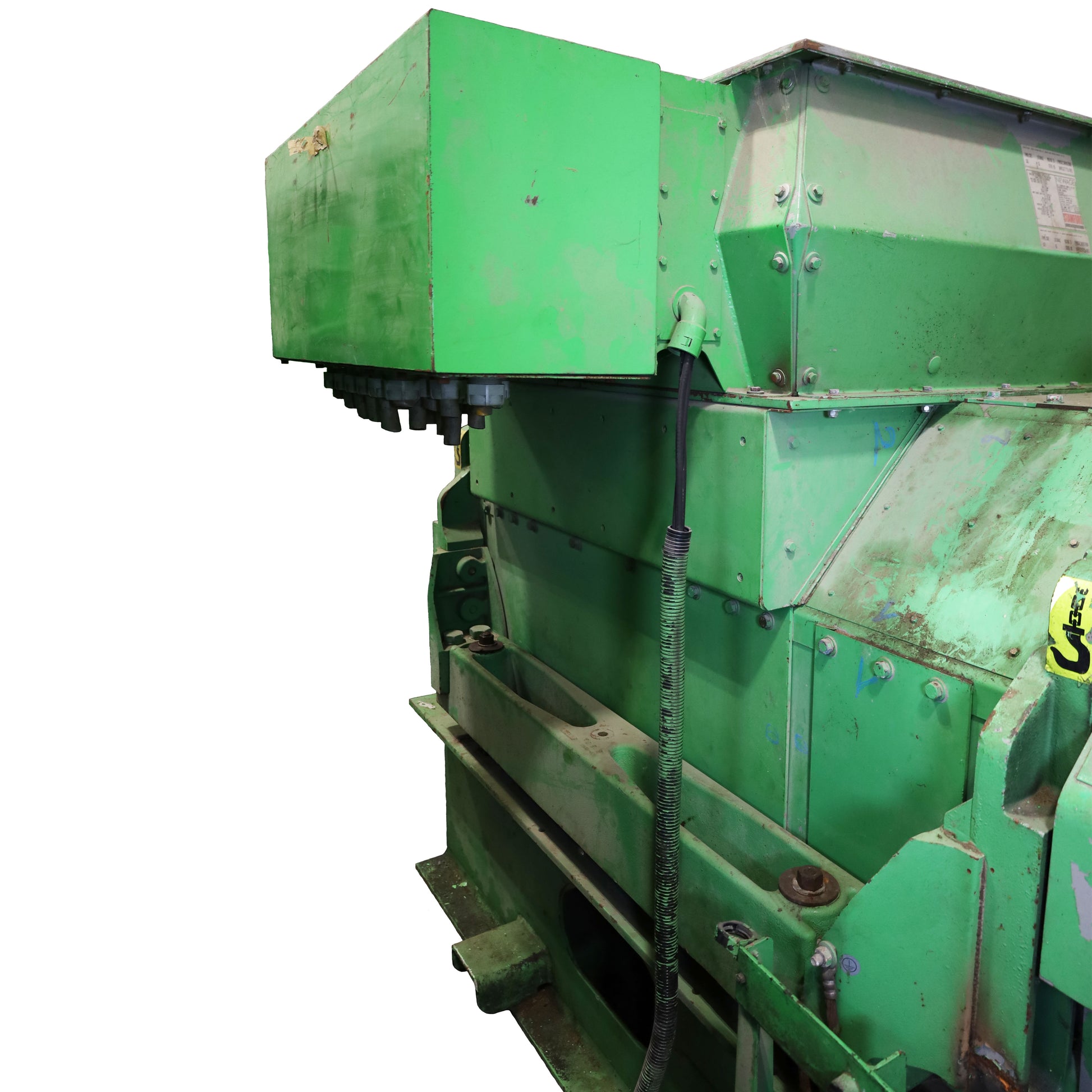

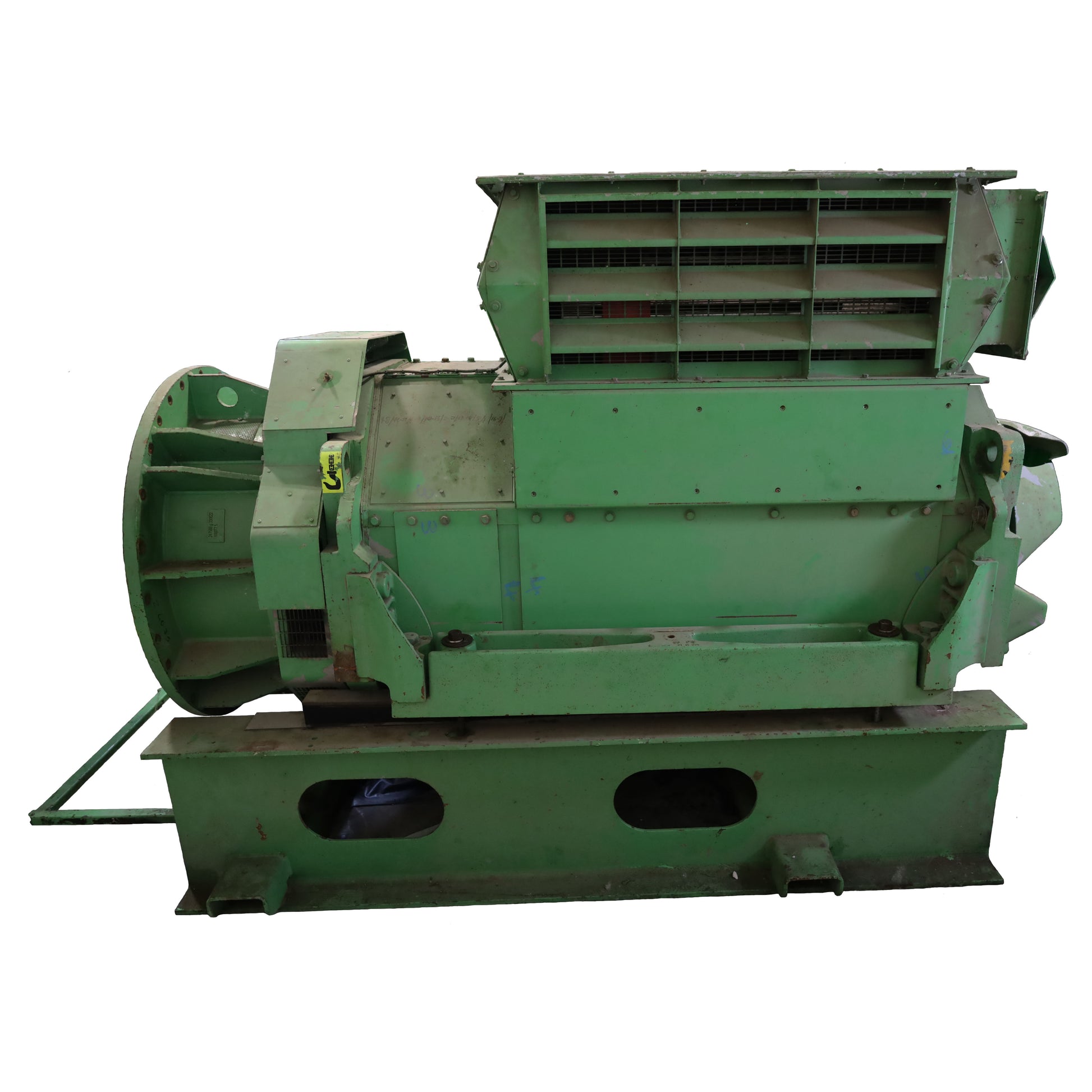

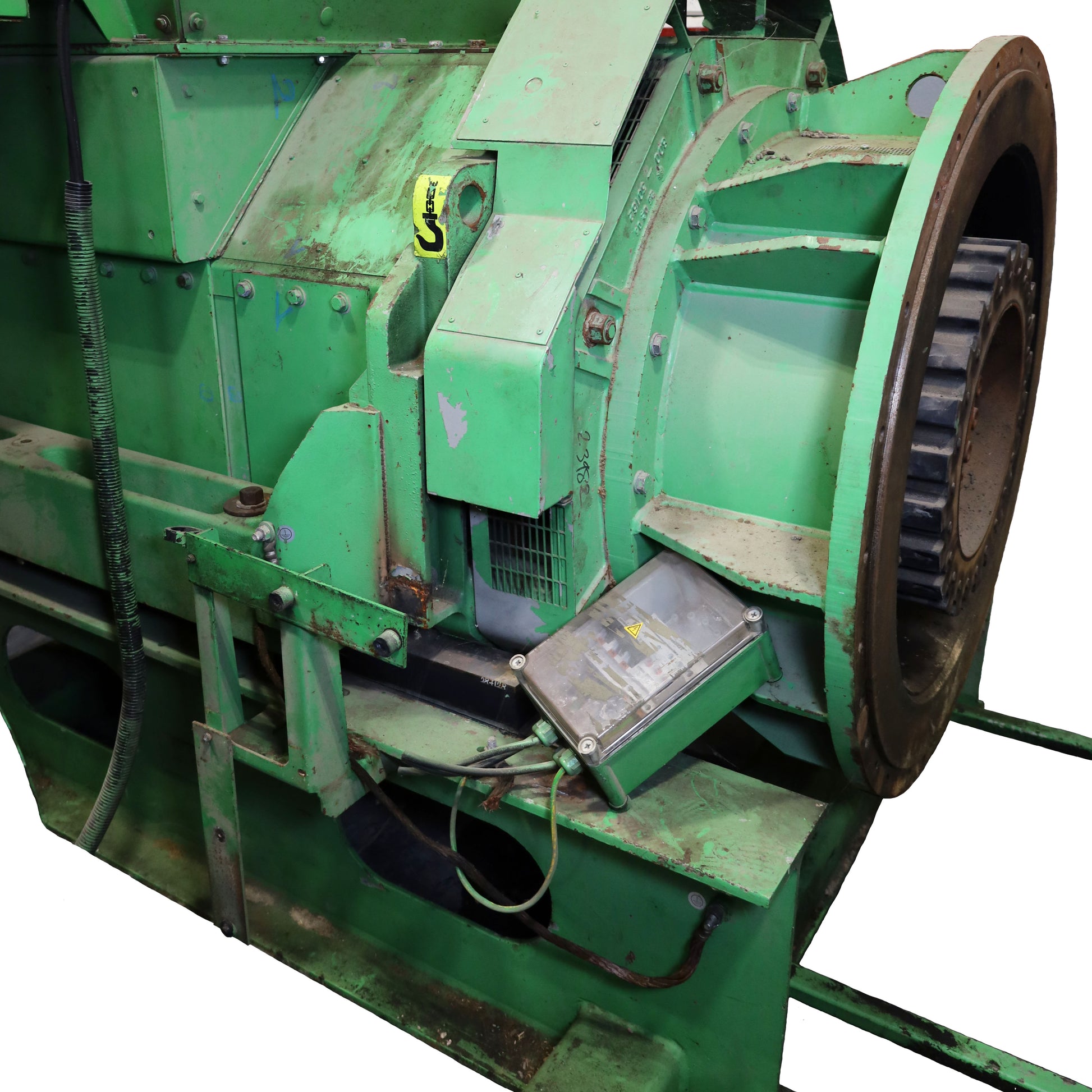

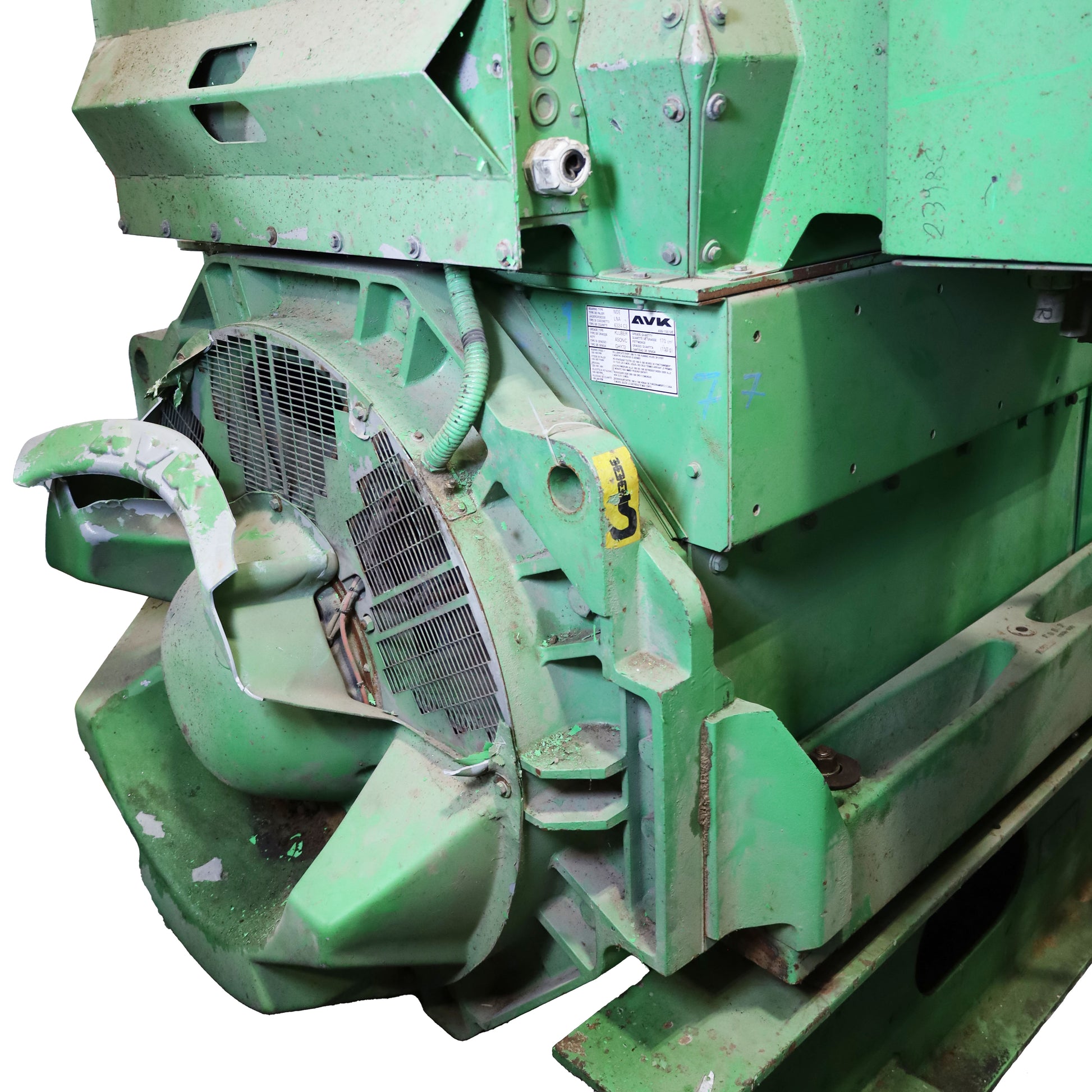

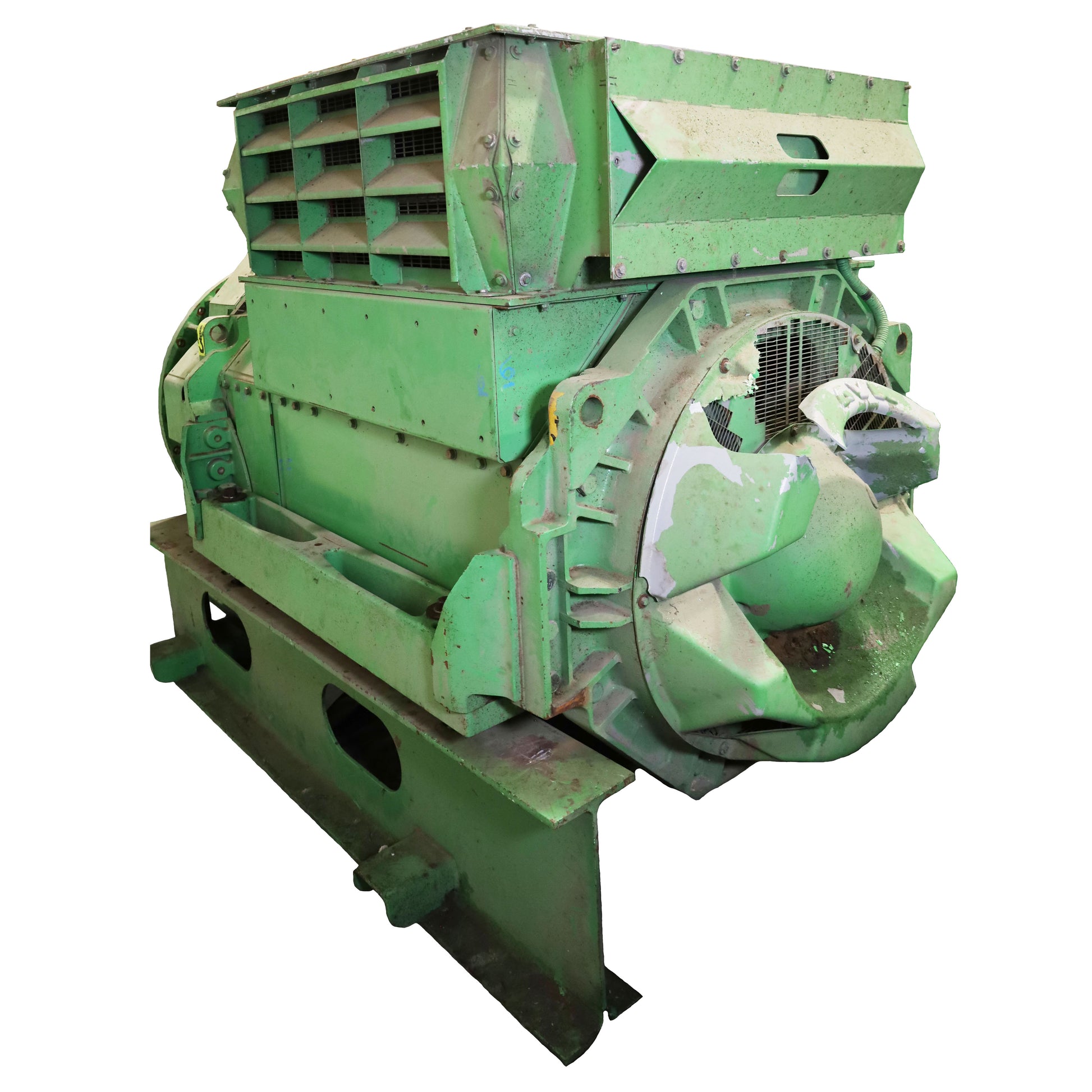

Alternator Stamford LVSI804W2 (434193)
Vendor: Stamford
Type: Alternator
Sku: SP50008845_U
Description
The Stamford LVSI804W2 alternator is a three-phase synchronous generator designed for industrial applications. It features a brushless connection and automatic voltage regulation (AVR) to maintain voltage stability during continuous operation.
Specifiche Tecniche

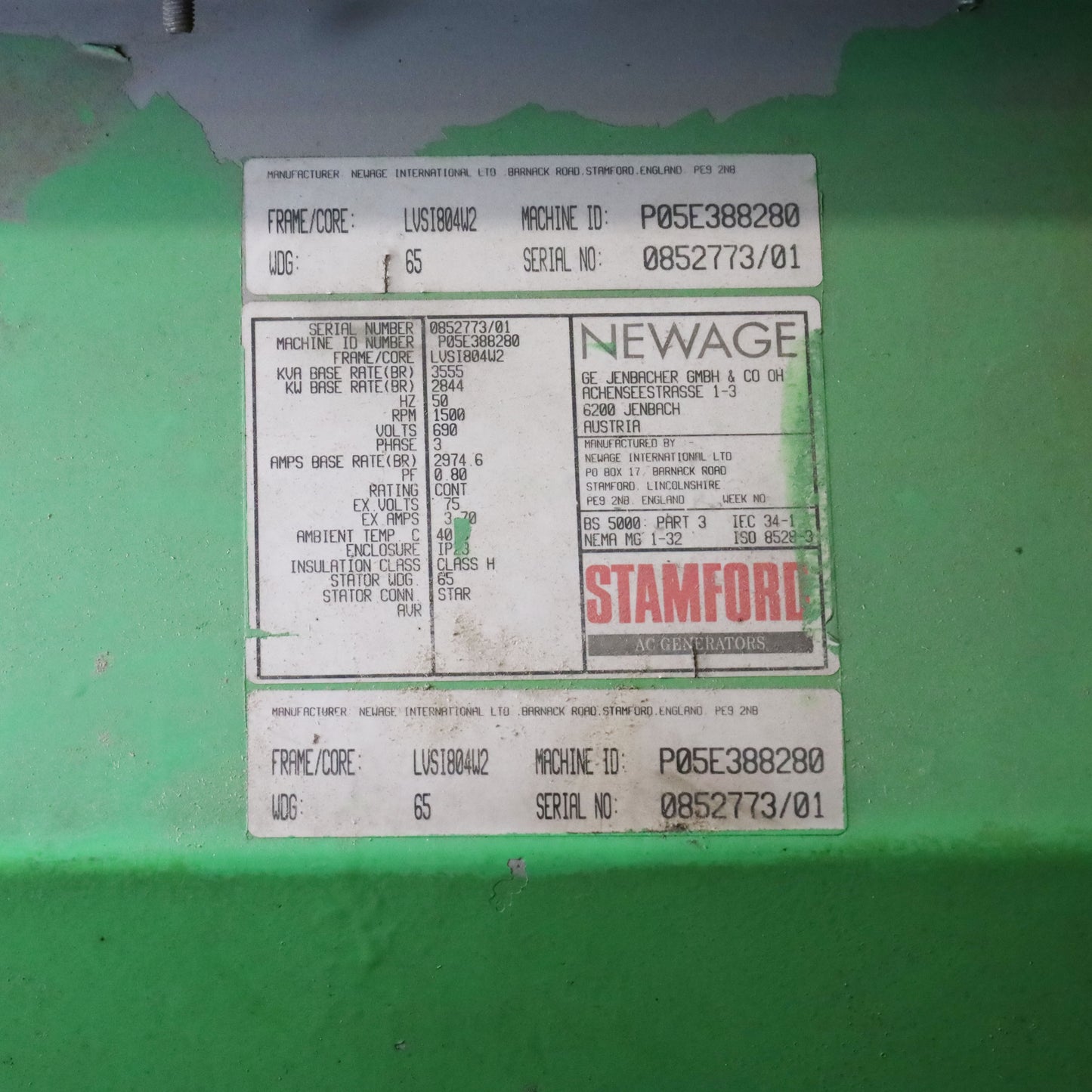

| Telaio/Core | LVSI804W2 |
| Winding | 65 |
| ID machine | P05E388280 |
| Serial number | 0852773/01 |
| Nominal base power | 3555 kVA/2844 |
| Frequency | 50 hz |
| Rotations per minute | 1500 |
| Voltage | 690 V |
| Phases | 3 (three-phase) |
| Base rated current | 2974.6 A |
| Power factor | 0,80 |
| Classification | continues |
| Excitation voltage | 75 V |
| Excitation current | 3.70 A |
| Ambient temperature | 40° C |
| Involucro | IP23 |
| Insulation class | classe H (180°C) |
| Avvolgimenti dello statore | 65 |
| Connexions of the stator windings | STAR |
Check availability
Notified by email when this product becomes available
Alternator Stamford LVSI804W2 (434193)
€24.500,00
