Compensated flanged axial DN100 (243847)
Condizione: New (Never used)
Vendor: Innio Jenbacher
Type: Compensator
Sku: SP50002137
- Regular price
- €415,09
- Regular price
-
- Sale price
- €415,09
- Unit price
- per
I prezzi degli articoli non includono l’IVA. In base all’indirizzo di spedizione, l’IVA potrebbe variare durante il processo di acquisto.
Low stock: 8 left
Description

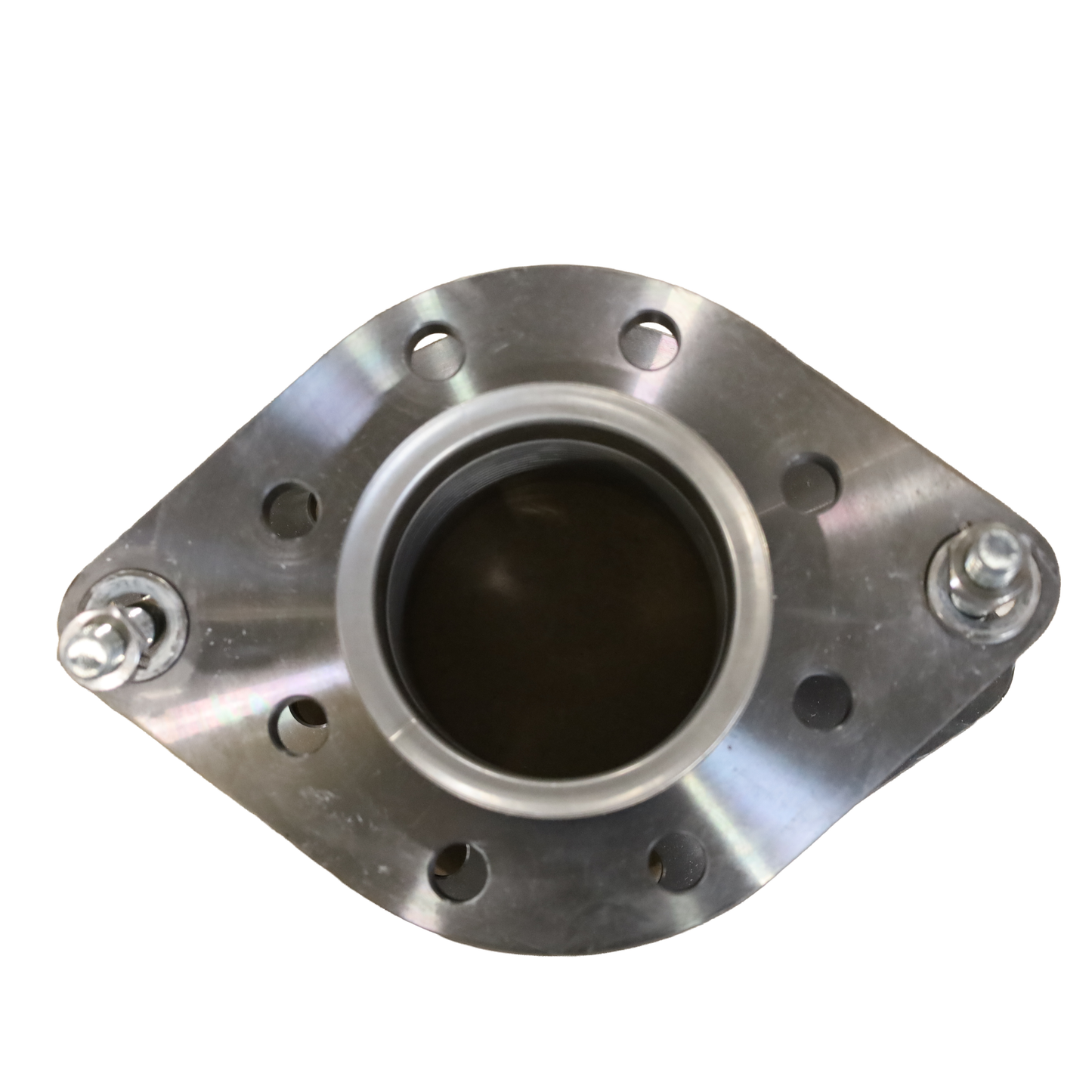

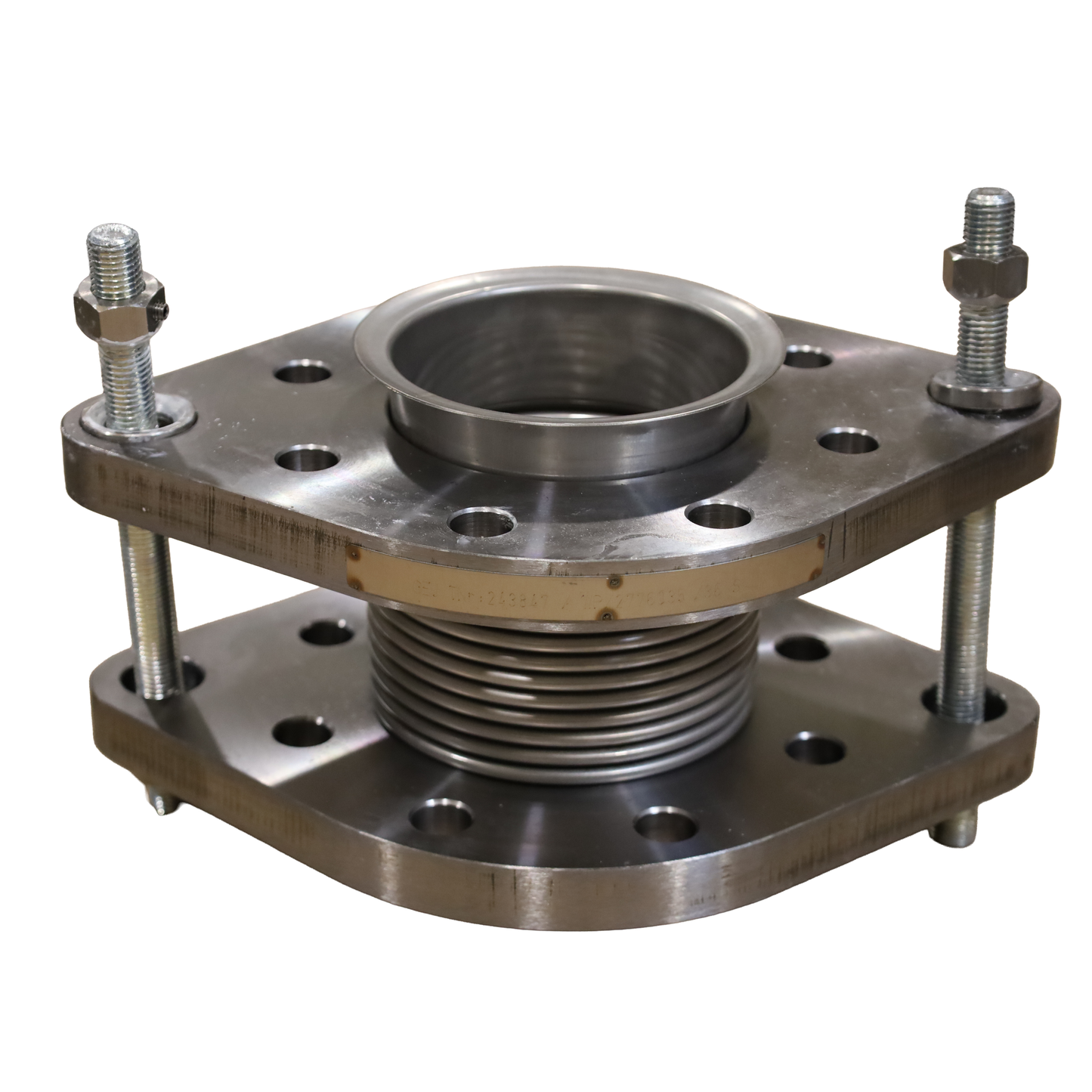

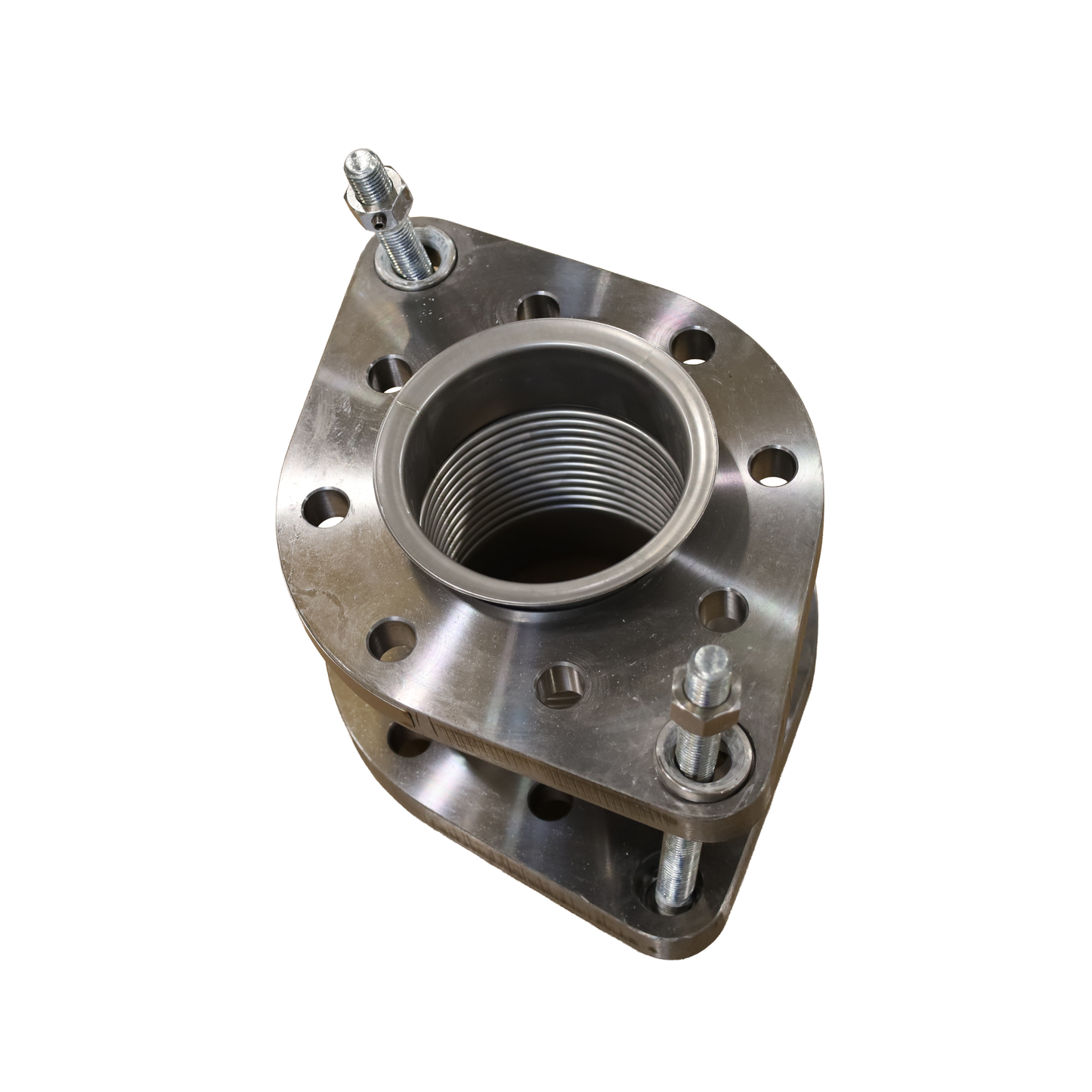

Axial compensator with DN100 flanged connections and total length of 166 mm. The central corrugated body allows absorption of axial expansions. The triangular flanges, joined by three bolts, ensure fastening in systems with a nominal pressure of PN16 and an outer diameter of 142 mm.
Specifiche Tecniche
| Type | Axial |
| Connection | Flange |
| Diametro interno | 100 mm |
| Length | 166 mm |
| Nominal pressure PN | PN16 bar |
| External diameter | 142 mm |
| Unit weight | 14 kg |
| HTS Code | 83071000 |
